Surrogate Models

Some industrial applications require modeling complex processes that can result either in highly nonlinear functions or functions defined by a simulation process. In those contexts, optimization solvers often struggle. The reason may be that relaxations of the nonlinear functions are not good enough to make the solver prove an acceptable bound in a reasonable amount of time. Another issue may be that the solver is not able to represent the functions.

An approach that has been proposed in the literature is to approximate the problematic nonlinear functions via neural networks with ReLU activation and use MIP technology to solve the constructed approximation (see e.g. Heneao Maravelias 2011, Schweitdmann et.al. 2022). This use of neural networks can be motivated by their ability to provide a universal approximation (see e.g. Lu et.al. 2017). This use of ML models to replace complex processes is often referred to as surrogate models.

In the following example, we approximate a nonlinear function via Scikit-learn MLPRegressor and then solve an optimization problem that uses the approximation of the nonlinear function with Gurobi.

The purpose of this example is solely illustrative and doesn’t relate to any particular application.

The function we approximate is the 2D peaks function.

The function is given as

\[\begin{split} \begin{aligned} f(x) = & 3 \cdot (1-x_1)^2 \cdot \exp(-x_1^2 - (x_2+1)^2) - \\ & 10 \cdot (\frac{x_1}{5} - x_1^3 - x_2^5) \cdot \exp(-x_1^2 - x_2^2) - \\ & \frac{1}{3} \cdot \exp(-(x_1+1)^2 - x_2^2). \end{aligned}\end{split}\]

In this example, we want to find the minimum of \(f\) over the interval \([-2, 2]^2\):

\[y = \min \{f(x) : x \in [-2,2]^2\}.\]

The global minimum of this problem can be found numerically to have value \(-6.55113\) at the point \((0.2283, -1.6256)\).

Here to find this minimum of \(f\), we approximate \(f(x)\) through a neural network function \(g(x)\) to obtain a MIP and solve

\[\hat y = \min \{g(x) : x \in [-2,2]^2\} \approx y.\]

First import the necessary packages. Before applying the neural network, we do a preprocessing to extract polynomial features of degree 2. Hopefully this will help us to approximate the smooth function. Besides, gurobipy, numpy and the appropriate sklearn objects, we also use matplotlib to plot the function, and its approximation.

import gurobipy as gp
import numpy as np
from gurobipy import GRB
from matplotlib import cm
from matplotlib import pyplot as plt
from sklearn import metrics
from sklearn.neural_network import MLPRegressor
from sklearn.pipeline import make_pipeline
from sklearn.preprocessing import PolynomialFeatures

from gurobi_ml import add_predictor_constr

Define the nonlinear function of interest

We define the 2D peak function as a python function.

def peak2d(x1, x2):
    return (
        3 * (1 - x1) ** 2.0 * np.exp(-(x1**2) - (x2 + 1) ** 2)
        - 10 * (x1 / 5 - x1**3 - x2**5) * np.exp(-(x1**2) - x2**2)
        - 1 / 3 * np.exp(-((x1 + 1) ** 2) - x2**2)
    )

To train the neural network, we make a uniform sample of the domain of the function in the region of interest using numpy’s arrange function.

We then plot the function with matplotlib.

x1, x2 = np.meshgrid(np.arange(-2, 2, 0.01), np.arange(-2, 2, 0.01))
y = peak2d(x1, x2)

fig, ax = plt.subplots(subplot_kw={"projection": "3d"})
# Plot the surface.
surf = ax.plot_surface(x1, x2, y, cmap=cm.coolwarm, linewidth=0.01, antialiased=False)
# Add a color bar which maps values to colors.
fig.colorbar(surf, shrink=0.5, aspect=5)
plt.show()

Approximate the function

To fit a model, we need to reshape our data. We concatenate the values of x1 and x2 in an array X and make y one dimensional.

X = np.concatenate([x1.ravel().reshape(-1, 1), x2.ravel().reshape(-1, 1)], axis=1)
y = y.ravel()

To approximate the function, we use a Pipeline with polynomial features and a neural-network regressor. We do a relatively small neural-network.

# Run our regression
layers = [30] * 2
regression = MLPRegressor(hidden_layer_sizes=layers, activation="relu")
pipe = make_pipeline(PolynomialFeatures(), regression)
pipe.fit(X=X, y=y)

Pipeline(steps=[('polynomialfeatures', PolynomialFeatures()),
                ('mlpregressor', MLPRegressor(hidden_layer_sizes=[30, 30]))])

In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

To test the accuracy of the approximation, we take a random sample of points, and we print the \(R^2\) value and the maximal error.

X_test = np.random.random((100, 2)) * 4 - 2

r2_score = metrics.r2_score(peak2d(X_test[:, 0], X_test[:, 1]), pipe.predict(X_test))
max_error = metrics.max_error(peak2d(X_test[:, 0], X_test[:, 1]), pipe.predict(X_test))
print(f"R2 error {r2_score}, maximal error {max_error}")

R2 error 0.9997851381774071, maximal error 0.12146340707816314

While the \(R^2\) value is good, the maximal error is quite high. For the purpose of this example we still deem it acceptable. We plot the function.

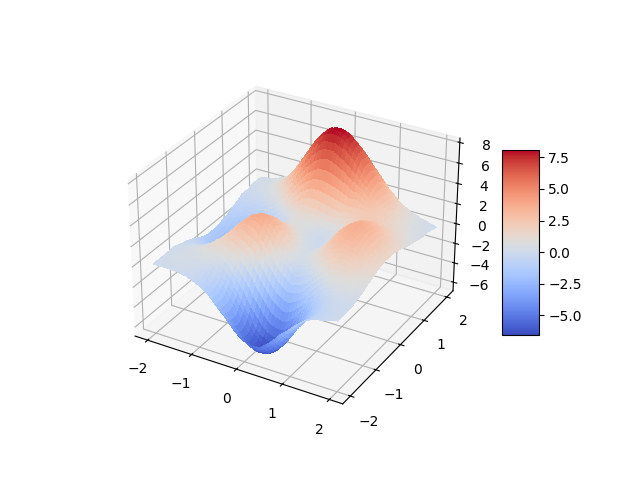

fig, ax = plt.subplots(subplot_kw={"projection": "3d"})
# Plot the surface.
surf = ax.plot_surface(
    x1,
    x2,
    pipe.predict(X).reshape(x1.shape),
    cmap=cm.coolwarm,
    linewidth=0.01,
    antialiased=False,
)
# Add a color bar which maps values to colors.
fig.colorbar(surf, shrink=0.5, aspect=5)
plt.show()

Visually, the approximation looks close enough to the original function.

Build and Solve the Optimization Model

We now turn to the optimization model. For this model we want to find the minimal value of y_approx which is the approximation given by our pipeline on the interval.

Note that in this simple example, we don’t use matrix variables but regular Gurobi variables instead.

m = gp.Model()

x = m.addVars(2, lb=-2, ub=2, name="x")
y_approx = m.addVar(lb=-GRB.INFINITY, name="y")

m.setObjective(y_approx, gp.GRB.MINIMIZE)

# add "surrogate constraint"
pred_constr = add_predictor_constr(m, pipe, x, y_approx)

pred_constr.print_stats()

Restricted license - for non-production use only - expires 2027-11-29
Warning for adding constraints: zero or small (< 1e-13) coefficients, ignored
Model for pipe:
126 variables
61 constraints
6 quadratic constraints
60 general constraints
Input has shape (1, 2)
Output has shape (1, 1)

Pipeline has 2 steps:

--------------------------------------------------------------------------------
Step            Output Shape    Variables              Constraints
                                                Linear    Quadratic      General
================================================================================
poly_feat             (1, 6)            6            0            6            0

dense                (1, 30)           60           30            0           30 (relu)

dense0               (1, 30)           60           30            0           30 (relu)

dense1                (1, 1)            0            1            0            0


--------------------------------------------------------------------------------

Now call optimize. Since we use polynomial features the resulting model is a non-convex quadratic problem. In Gurobi, we need to set the parameter NonConvex to 2 to be able to solve it.

m.Params.TimeLimit = 20
m.Params.MIPGap = 0.1
m.Params.NonConvex = 2

m.optimize()

Set parameter TimeLimit to value 20
Set parameter MIPGap to value 0.1
Set parameter NonConvex to value 2
Gurobi Optimizer version 13.0.2 build v13.0.2rc1 (linux64 - "Ubuntu 24.04 LTS")

CPU model: AMD EPYC 9R14, instruction set [SSE2|AVX|AVX2|AVX512]
Thread count: 2 physical cores, 2 logical processors, using up to 2 threads

Non-default parameters:
TimeLimit  20
MIPGap  0.1
NonConvex  2

Optimize a model with 61 rows, 129 columns and 1054 nonzeros (Min)
Model fingerprint: 0x269cc4c1
Model has 1 linear objective coefficients
Model has 6 quadratic constraints
Model has 60 simple general constraints
  60 MAX
Variable types: 129 continuous, 0 integer (0 binary)
Coefficient statistics:
  Matrix range     [1e-13, 2e+00]
  QMatrix range    [1e+00, 1e+00]
  QLMatrix range   [1e+00, 1e+00]
  Objective range  [1e+00, 1e+00]
  Bounds range     [2e+00, 2e+00]
  RHS range        [6e-03, 7e-01]
  QRHS range       [1e+00, 1e+00]

Presolve added 79 rows and 16 columns
Presolve time: 0.00s
Presolved: 150 rows, 146 columns, 1198 nonzeros
Presolved model has 3 bilinear constraint(s)

Solving non-convex MIQCP to global optimality

Variable types: 104 continuous, 42 integer (42 binary)

Root relaxation: objective -4.554580e+01, 164 iterations, 0.00 seconds (0.00 work units)

    Nodes    |    Current Node    |     Objective Bounds      |     Work
 Expl Unexpl |  Obj  Depth IntInf | Incumbent    BestBd   Gap | It/Node Time

     0     0  -45.54580    0   30          -  -45.54580      -     -    0s
H    0     0                      -2.5111639  -45.54580  1714%     -    0s
     0     0  -38.66434    0   34   -2.51116  -38.66434  1440%     -    0s
     0     0  -37.92198    0   34   -2.51116  -37.92198  1410%     -    0s
     0     0  -34.15970    0   36   -2.51116  -34.15970  1260%     -    0s
     0     0  -33.63057    0   36   -2.51116  -33.63057  1239%     -    0s
     0     0  -32.78022    0   37   -2.51116  -32.78022  1205%     -    0s
     0     0  -32.61160    0   37   -2.51116  -32.61160  1199%     -    0s
     0     0  -31.81690    0   38   -2.51116  -31.81690  1167%     -    0s
     0     0  -31.69018    0   41   -2.51116  -31.69018  1162%     -    0s
     0     0  -31.54373    0   40   -2.51116  -31.54373  1156%     -    0s
     0     0  -31.50575    0   40   -2.51116  -31.50575  1155%     -    0s
     0     0  -31.26419    0   39   -2.51116  -31.26419  1145%     -    0s
     0     0  -31.18173    0   38   -2.51116  -31.18173  1142%     -    0s
     0     0  -30.87927    0   43   -2.51116  -30.87927  1130%     -    0s
     0     0  -30.77311    0   43   -2.51116  -30.77311  1125%     -    0s
     0     0  -30.49558    0   42   -2.51116  -30.49558  1114%     -    0s
     0     0  -30.46440    0   42   -2.51116  -30.46440  1113%     -    0s
     0     0  -30.31921    0   42   -2.51116  -30.31921  1107%     -    0s
     0     0  -30.29665    0   43   -2.51116  -30.29665  1106%     -    0s
     0     0  -30.27140    0   43   -2.51116  -30.27140  1105%     -    0s
     0     0  -30.26187    0   41   -2.51116  -30.26187  1105%     -    0s
     0     2  -30.26187    0   41   -2.51116  -30.26187  1105%     -    0s
H   99    96                      -5.1706314  -24.69709   378%  31.3    0s
H  117   112                      -6.5363683  -24.69709   278%  28.1    0s
*  147   114              35      -6.5599325  -24.37872   272%  25.0    0s
*  148   114              36      -6.5797334  -24.37872   271%  24.9    0s
*  151   114              37      -6.5836144  -24.37872   270%  24.4    0s
*  153   114              38      -6.5837385  -24.37872   270%  24.1    0s
*  154   114              39      -6.5837726  -24.37872   270%  23.9    0s
H  819   326                      -6.5837729  -16.60065   152%  19.0    0s
H 1055   358                      -6.5837731  -15.40436   134%  18.7    0s
H 2430   435                      -6.5837731  -11.89356  80.6%  17.1    0s

Cutting planes:
  Gomory: 4
  Cover: 1
  Implied bound: 42
  MIR: 118
  Flow cover: 42

Explored 4502 nodes (75564 simplex iterations) in 1.27 seconds (2.58 work units)
Thread count was 2 (of 2 available processors)

Solution count 8: -6.58377 -6.58374 -6.58361 ... -2.51116

Optimal solution found (tolerance 1.00e-01)
Best objective -6.583773128423e+00, best bound -6.652353975137e+00, gap 1.0417%

After solving the model, we check the error in the estimate of the Gurobi solution.

print(
    "Maximum error in approximating the regression {:.6}".format(
        np.max(pred_constr.get_error())
    )
)

Maximum error in approximating the regression 3.4811e-06

Finally, we look at the solution and the objective value found.

print(
    f"solution point of the approximated problem ({x[0].X:.4}, {x[1].X:.4}), "
    + f"objective value {m.ObjVal}."
)
print(
    f"Function value at the solution point {peak2d(x[0].X, x[1].X)} error {abs(peak2d(x[0].X, x[1].X) - m.ObjVal)}."
)

solution point of the approximated problem (0.2172, -1.612), objective value -6.583773128423022.
Function value at the solution point -6.5467994227283315 error 0.03697370569469083.

The difference between the function and the approximation at the computed solution point is noticeable, but the point we found is reasonably close to the actual global minimum. Depending on the use case this might be deemed acceptable. Of course, training a larger network should result in a better approximation.
